隐患： 管道阀门螺栓安装方向不一致对标：《工业金属管道工程施工质量验收规范》GB50184-2011      7.3.8：法兰连接应使用同一规格螺栓，安装方向应一致；螺栓紧固后应与法兰紧贴，不得有楔缝，当需加垫圈时，每个螺栓不应超过一个，所有螺母应全部拧入螺栓。

　　Hidden danger: Inconsistent installation direction of pipeline valve bolts benchmarking: "Code for Acceptance of Construction Quality of Industrial Metal Pipeline Engineering" GB50184-2011       7.3.8: Flange connections should use bolts of the same specification, and the installation direction should be consistent; After the bolt is tightened, it should be tightly attached to the flange without any wedge gaps. When a washer is required, each bolt should not exceed one, and all nuts should be screwed into the bolt.

　　阀门上的箭头在流体控制中的含义

　　The meaning of arrows on valves in fluid control

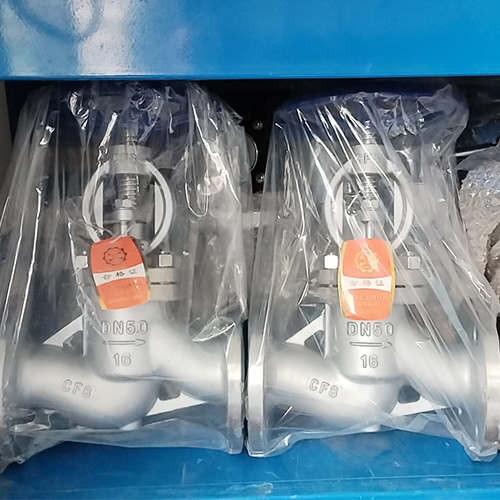

　　阀门上的箭头是流体流向的明确指示标志，它指明了阀门在安装时流体应该通过的方向。这个看似简单的标记在实际应用中至关重要，原因如下：保证阀门正常工作：单向阀：这是最关键的！止回阀（单向阀）必须按照箭头方向安装，否则它将无法阻止流体倒流，完全失去其核心功能。截止阀：大多数截止阀设计为流体从阀瓣下方流入（低进高出）。箭头确保流体按设计方向流动，这样在关闭阀门时，流体压力有助于（而不是阻碍）阀瓣压紧密封面，实现更好的密封效果，同时开启阀门也更省力。其他特定设计的阀门：某些特殊结构的阀门（如一些减压阀、特定类型的控制阀、过滤器等）内部结构对流向有严格要求，箭头确保流体按设计路径通过，以实现预期功能（如减压、过滤效率、控制精度）。优化密封性能和寿命：很多阀门的阀座和密封件设计时考虑了流体的冲击方向。正确流向有助于密封件均匀受力，减少冲刷磨损，延长阀门使用寿命。错误流向可能导致密封件被冲坏或受力不均，导致过早泄漏。

　　The arrow on the valve is a clear indication of the fluid flow direction, which indicates the direction in which the fluid should pass during installation of the valve. This seemingly simple marking is crucial in practical applications for the following reasons: to ensure that the valve works properly: one-way valve: This is the most crucial! The check valve (one-way valve) must be installed in the direction of the arrow, otherwise it will not be able to prevent fluid backflow and completely lose its core function. Stop valve: Most globe valves are designed with fluid flowing in from below the valve disc (low in, high out). The arrow ensures that the fluid flows in the designed direction, so that when the valve is closed, the fluid pressure helps (rather than hinders) the valve disc to tightly seal the cover, achieving better sealing effect, and opening the valve is also more effortless. Other valves with specific designs: Some valves with special structures (such as pressure reducing valves, specific types of control valves, filters, etc.) have strict requirements for flow direction in their internal structure. Arrows ensure that the fluid passes through the designed path to achieve the expected functions (such as pressure reduction, filtration efficiency, control accuracy). Optimize sealing performance and lifespan: Many valve seats and seals are designed with the direction of fluid impact in mind. The correct flow direction helps to evenly distribute force on the seal, reduce erosion and wear, and extend the service life of the valve. Incorrect flow direction may cause the seal to be damaged or subjected to uneven force, leading to premature leakage.

　　确保安全：在关键的安全系统中（如防止倒流造成污染或危险），止回阀的正确流向是防止事故的第一道防线。错误流向可能导致阀门失效、系统压力异常、设备损坏甚至安全事故。避免安装错误：管道系统复杂时，阀门方向容易混淆。箭头提供了清晰直观的指示，大大降低安装错误的风险。

　　Ensuring safety: In critical safety systems such as preventing backflow from causing pollution or danger, the correct flow direction of check valves is the first line of defense against accidents. Incorrect flow direction may lead to valve failure, abnormal system pressure, equipment damage, and even safety accidents. Avoid installation errors: When the pipeline system is complex, valve directions can be easily confused. Arrows provide clear and intuitive indications, greatly reducing the risk of installation errors.

　　需要注意的关键点：强制性遵守：对于止回阀和截止阀，箭头方向是强制性的，必须严格遵守。装反会导致阀门功能失效或性能严重下降。建议性流向：对于某些理论上可以双向流动的阀门（如部分球阀、蝶阀、闸阀、旋塞阀），箭头通常指示的是制造商推荐或优先的流向。虽然在这些阀门上偶尔反向安装可能不会立即导致阀门损坏或完全失效（尤其全开时），但遵循箭头方向通常能获得最佳的密封性能、操作手感和使用寿命。在部分工况下（如高压差、含颗粒流体），反向安装也可能加速磨损。

　　Key points to note: Mandatory compliance: For check valves and globe valves, the direction of the arrow is mandatory and must be strictly followed. Reverse installation can cause valve failure or significant performance degradation. Suggested direction: For certain valves that theoretically can flow in both directions (such as some ball valves, butterfly valves, gate valves, and plug valves), arrows usually indicate the manufacturer's recommended or preferred flow direction. Although occasional reverse installation on these valves may not immediately cause valve damage or complete failure (especially when fully open), following the direction of the arrow usually results in optimal sealing performance, operating feel, and service life. Under certain operating conditions (such as high pressure differentials and fluid containing particles), reverse installation may also accelerate wear.

　　过滤器：过滤器上的箭头必须遵守，否则滤芯可能被冲毁或过滤效果极差。安装前确认：在将阀门安装到管道系统之前，务必确认箭头方向与预期的流体流向一致。参考说明书：当对特定阀门的流向要求有疑问时，务必查阅制造商的技术说明书或产品样本，其中会明确规定流向要求。结构特征：除了箭头，阀体结构本身也可能暗示流向（如截止阀的阀瓣倾斜方向）。

　　Filter: The arrows on the filter must be followed, otherwise the filter element may be washed away or the filtering effect may be extremely poor. Confirmation before installation: Before installing the valve into the pipeline system, it is important to confirm that the direction of the arrow is consistent with the expected fluid flow direction. Reference manual: When there are doubts about the flow requirements of a specific valve, it is necessary to consult the manufacturer's technical manual or product sample, which will clearly specify the flow requirements. Structural features: In addition to arrows, the valve body structure itself may also imply flow direction (such as the tilting direction of the valve disc of a globe valve).

　　总结：阀门上的箭头是流体流动方向的强制性或推荐性指示标识。对于止回阀和截止阀，它是强制性的，必须严格遵守安装方向。对于其他阀门，遵循箭头方向是保证其最佳性能、密封性和寿命的最佳实践。忽略这个小小的箭头可能导致阀门功能失效、密封泄漏、设备损坏甚至安全事故。在安装任何阀门时，确认箭头方向与流体实际流向一致是必不可少的关键步骤。

　　Summary: The arrow on the valve is a mandatory or recommended indication of the direction of fluid flow. For check valves and globe valves, it is mandatory to strictly follow the installation direction. For other valves, following the direction of the arrow is the best practice to ensure their optimal performance, sealing, and lifespan. Ignoring this small arrow may result in valve failure, seal leakage, equipment damage, and even safety accidents. It is essential to confirm that the direction of the arrow is consistent with the actual flow direction of the fluid when installing any valve.
